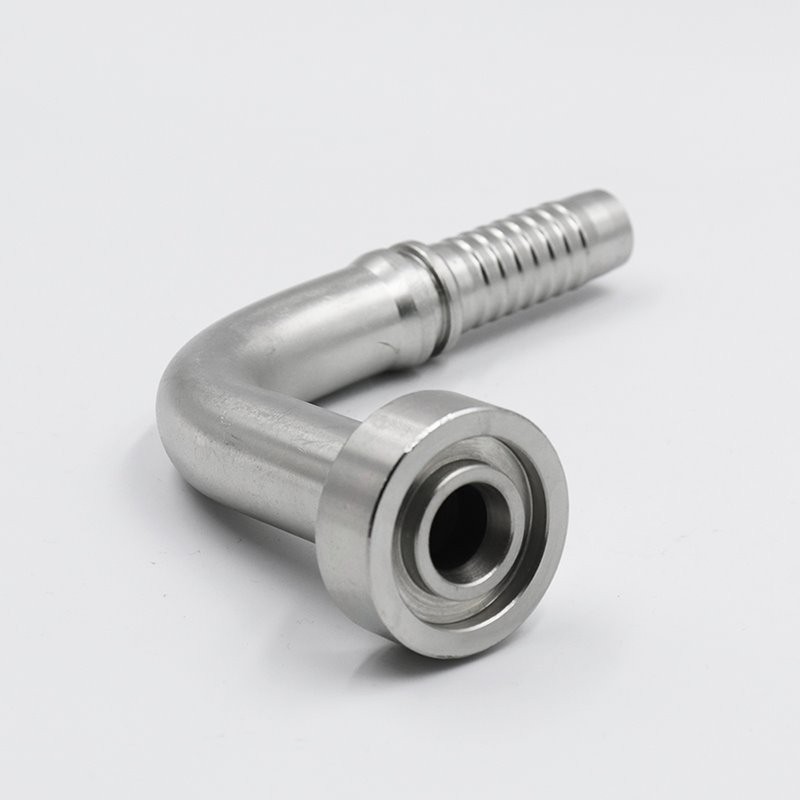

90 Digri Elbo SAE Flanj em i wanpela stretpela =-}enjiniaring haidrolik fiting ol i wokim bilong givim hai-}}}}Pruf koneksen long ol tait spes we ol daireksen senis i mas kamap. Ol i wokim long SAE J518 na ISO 6162 standet, dispela elbo flen i mekim gutpela wok bilong ron bilong wara taim em i holim strong sistem integriti long askim long ol haidrolik aplikesen.
Ol spesifik
|
PAT NO. |
FLANGE SAIS |
EM I BORE |

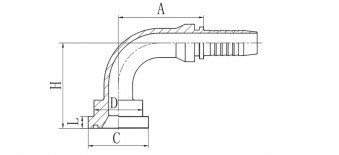

OL DIIMENSEN |
|||||
|
DN |
DES |
A |
C |
D |
H |
L |
||
|
87691-08-08 |
1/2" |
12 |
08 |
41 |
31.7 |
24 |
48 |
7.75 |
|
87691-12-10 |
3/4" |
16 |
10 |
56.5 |
41.3 |
32 |
56.5 |
8.76 |
|
87691-12-12 |
3/4" |
20 |
12 |
66.2 |
41.3 |
32 |
66 |
8.76 |
|
87691-16-12 |
1" |
20 |
12 |
66.2 |
47.6 |
38 |
69 |
9.53 |
|
87691-16-16 |
1" |
25 |
16 |
78 |
47.6 |
38 |
74.5 |
9.53 |
|
87691-16-20 |
1" |
32 |
20 |
91.5 |
47.6 |
38 |
85.5 |
9.53 |
|
87691-20-16 |
1.1/4" |
25 |
16 |
78 |
54 |
44 |
78.5 |
10.29 |
|
87691-20-20 |
1.1/4" |
32 |
20 |
91.5 |
54 |
44 |
89.5 |
10.29 |
|
87691-24-20 |
1.1/2" |
32 |
20 |
91.5 |
63.5 |
51 |
94.5 |
12.57 |
|
87691-24-24 |
1.1/2" |
40 |
24 |
109.4 |
63.5 |
51 |
108 |
12.57 |
|
87691-32-24 |
2" |
40 |
24 |
109.4 |
79.4 |
67 |
116 |
12.57 |
|
87691-32-32 |
2" |
50 |
32 |
131.8 |
79.4 |
67 |
136.3 |
12.57 |
