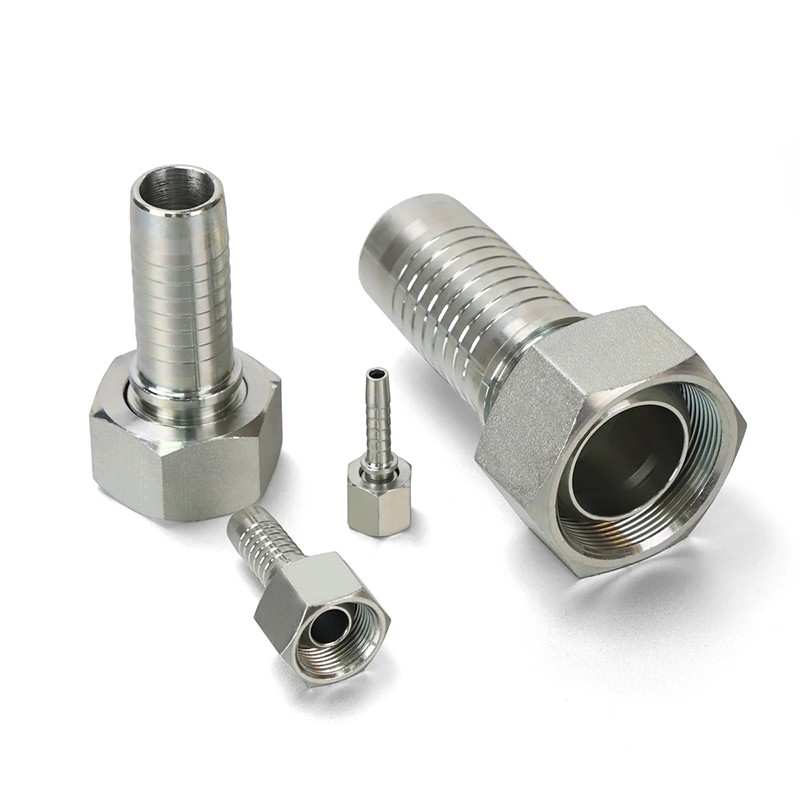

Dispela meri Haidrolik Hos Fitting em i wanpela hai-pefomens, presis-}i}enjiniaring konekta ol i wokim bilong seif na lik i no gat mak bilong wara long ol haidrolik sistem. Ol i wokim bilong sanap strong long bikpela presa, ol bikpela tempereja, na ol hatpela ples, dispela fiting i mekim na ol i ken mekim gut wok long ol wok bilong indastriel, agrikalsa, konstraksen, na ol aplikesen bilong ol ka.
Ol spesifik
|

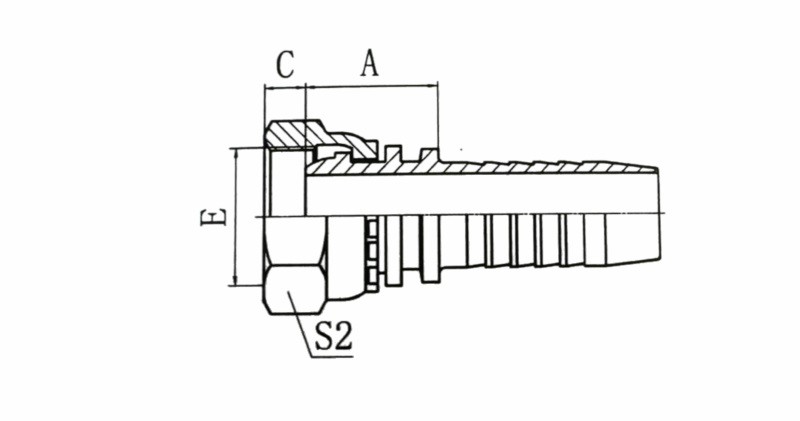

PAT NO. |
TRAIM E |
EM I BORE |
OL DIIMENSEN |
|||
|
DN |
DES |
A |
C |
S2 |
||
|
20111-10-03 |
M10X1 |
5 |
03 |
18 |
2.5 |
14 |
|
20111-10-04 |
M10X1 |
6 |
04 |
18 |
2.5 |
14 |
|
20111-12-04 |
M12X1.5 |
6 |
04 |
18.5 |
4 |
17 |
|
20111-12-05 |
M12X1.5 |
8 |
05 |
18.5 |
4 |
17 |
|
20111-14-04 |
M14X1.5 |
6 |
04 |
19.5 |
4.5 |
19 |
|
20111-14-05 |
M14X1.5 |
8 |
05 |
19.5 |
4.5 |
19 |
|
20111-16-04 |
M16X1.5 |
6 |
04 |
19.5 |
4.5 |
22 |
|
20111-16-05 |
M16X1.5 |
8 |
05 |
20 |
4.5 |
22 |
|
20111-16-06 |
M16X1.5 |
10 |
06 |
20 |
4.5 |
22 |
|
20111-18-05T |
M18X1.5 |
8 |
05 |
21.5 |
4 |
24 |
|
20111-18-06 |
M18X1.5 |
10 |
06 |
21.5 |
4 |
24 |
|
20111-18-08 |
M18X1.5 |
12 |
08 |
22 |
4 |
24 |
|
20111-20-08T |
M20X1.5 |
10 |
06 |
20.5 |
5.5 |
24 |
|
20111-20-08 |
M20X1.5 |
12 |
06 |
23 |
5.5 |
27 |
|
20111-22-08T |
M22X1.5 |
10 |
06 |
23 |
5 |
27 |
|
20111-22-08 |
M22X1.5 |
12 |
08 |
23.5 |
5 |
27 |
|
20111-22-10 |
M22X1.5 |
16 |
10 |
24.5 |
5 |
27 |
|
20111-24-08T |
M24X1.5 |
12 |
08 |
22 |
5.5 |
30 |
|
20111-24-10 |
M24X1.5 |
16 |
10 |
26 |
5 |
30 |
|
20111-27-08DT |
M27X1.5 |
12 |
08 |
23 |
5.5 |
32 |
|
20111-27-10DT |
M27X1.5 |
18 |
10 |
23.5 |
5.5 |
32 |
|
20111-27-12D |
M27X1.5 |
20 |
12 |
26 |
5.5 |
32 |
|
20111-27-10T |
M27X2 |
18 |
10 |
23.5 |
7 |
32 |
|
20111-30-12D |
M30X1.5 |
20 |
12 |
26.5 |
6 |
36 |
|
20111-30-12 |
M30X2 |
20 |
12 |
28.5 |
7 |
36 |
|
20111-36-12T |
M36X2 |
20 |
12 |
26 |
7 |
41 |
|
20111-36-14T |
M36X2 |
22 |
14 |
26 |
7 |
41 |
|
20111-39-14T |
M39X2 |
22 |
14 |
28.5 |
7 |
48 |
|
20111-39-16T |
M39X2 |
25 |
16 |
29.5 |
7 |
46 |
Ol parameta/Teknikol Data
|
Orijinel |
ZheJiang, Saina |
Skop bilong aplikesen |
Paiplain koneksen |
|
Taim bilong wok long givim samting |
7-45 Ol De |
Peking |
Diwai Kes Peking |
|
Meteriel |
Sil bilong Kabon |
Woranti |
1 yia |
|
Sais |
1/4''-2'' |
Bren |
PAINIM |
|
Tritmen antap long pes |
Galvanisaim |
Pekej |
Katon Bokis |
Long Kampani
Ol gutpela samting
Premium Materiel & Durabiliti
Ol i wokim long hai-grade kabon stiel, steinles stiel (304/316), o bras bilong eksepsenel strong na korosen resistens.
Zinc-plated o pasived finis i mekem se i gat moa laef, iven long ol ples we i gat ol strong ples (olsem, solwota, kemikol, tempereja we i bigwan tumas).
Presisen Enjiniaring bilong Lik-Fri Pefomens
CNC{0}}}machine threads i mekem sua se i gat ol stret siling wetem ol man kaontepat blong man, i karemaot ol lik blong wota anda long hae presa.
Tait tolerans kontrol i garantiim oltaim kwaliti long olgeta fiting, daunim ol sistem i no wok gut.
Hae- Presa & Hae{1}}}Timperaja Resistens
Reit bilong inap long [X] PSI/bar (i narapela kain long model), na dispela i mekim ol i gutpela long ol hevi bilong ol hevi bilong en.
I gat ol bikpela tempereja (–40 digri F i go long +400 digri F / –40 digri long {+200 digri ) na i no gat difomesen o lus bilong pefomens.
Brod Kompatibiliti & Versatil
I stap long planti tret standet (NPT, BBPP, JIC, SAE, Metrik) na sais (1/8" i go long 2").
I stret wetem plante haedrolik hos mo ol ikwipmen, blong mekem sua se i isi blong integretem ol sistem we i stap finis.
I isi Instalesen & Mentenens
Yusa-}li disain i larim ol i bung hariap wantaim ol standet tul (o tul-ri long sampela model).
Ol fiting we oli save yusum bakegen long ol model we oli jusum oli daonem ol kos blong riplesmen mo taem blong daon.
Strongpela Kwaliti Asurens
100% presa- i bin kisim tes pastaim long ol i salim i go long haus bilong lukim olsem ol i ken bilip long en.
Komplien wantaim ISO, SAE, DIN, na ol narapela intanesenel standet bilong sefti na pefomens.
Ol Solusen bilong Kastom & OEM Sapot
Ol fiting we oli telarem i stap blong ol yunik haedrolik rikwaemen (spesel saes, ol materiel, ol koting).
Ol bikpela oda diskaun na ol fleksibel OEM sevis long inapim ol bikpela askim bilong projek.
Global Saplai Sen & Fast Delivery
Stokim ol inventori bilong salim hariap, daunim taim bilong lid.
FAQ
Wanem em wanpela Meri Haidrolik Hos Fiting?
Wanpela meri haidrolik hos fiting em i wanpela konekta ol i wokim bilong joinim ol haidrolik hos i go long ol komponen (pamp, valv, silinda) long rot bilong thread i go long wanpela man wanwok bilong em. I mekem sua se i gat wan sekuet, lik-}pruf koneksen long ol hae-}presa sistem sistem.
Wanem ol samting ol i yusim long ol samting bilong yu?
Ol fiting bilong mipela ol i wokim long:
Ol stiel bilong kabon (zinc-wantaim bilong daunim strong bilong korosen)
Steinles stiel (304/316 bilong ol hatpela ples)
Bras (long korosen resistens na non{0}}}spaking aplikesen)
Wanem ol presa reiting i save helpim ol fiting bilong yu?
I dipen long saes mo ol samting, ol fiting blong mifala oli save handelem 3,000 kasem 10,000 PSI (200 kasem 700 bar). Oltaem jekem ol spesifikasen blong prodak blong kasem ol stret reiting.
Wanem ol mak bilong tred i stap?
Mipela i ofaim:
NPT (Nesenel Paip Tapered) – Komon long Not Amerika
British Standard Paralel Paip) – Komon long Yurop/Asia
JIC (37 digri flare) – Long ol hai-}pesa haidrolik sistem
SAE, Metric, na ol narapela standet sapos yu askim
Olsem wanem mi ken makim stretpela sais bilong fit?
Stretim kain bilong tred na sais (olsem, 1/2" NPT) long haidrolik sistem bilong yu.
Mekem sua se i gat kompatibiliti wetem hos insaed diamita (ID) mo aotsaed diamita (OD).
Konsaltem saes gaed blong mifala o kontaktem teknikol tim blong mifala blong kasem help.
Ol fiting bilong yu yu ken yusim gen?
Sampela model (olsem, ol i ken yusim gen fil-}attached fiting) ol i ken brukim na instalim gen, na ol narapela (eksampel, ol fiting fiting) i stap oltaim. Sekim ol ditel bilong prodak pastaim long yusim gen.
Olsem wanem mi ken stopim ol lik long ol haidrolik koneksen?
Yusim thread silant o Teflon tep (long NPT tred).
Mekem sua se stret tok-}altaeting i save spolem ol tred.
Sekim ol sil/O-ring bilong werim na senisim sapos i gat nid.
Mi ken yusim ol dispela fiting wantaim ol narapela wara (olsem, fiul, wara)?
Yes, be konfemem ol samting we yu save mekem:
Stinles stiel – I moa gud blong ol wota we i mekem man i harem nogud (kemikol, solwota).
Bras – I gud tumas blong ol laen blong fuel (i no blong-}spak).
Stil bilong kabon – Standet bilong haidrolik oil tasol em inap ros wantaim wara.
Yu save givim ol kastom fiting?
Yes! Mipela i givim:
Ol spesel saes, ol samting, o ol koting (olsem, PTFE-lain).
OEM sevis bilong ol bikpela oda wantaim kastom brending.
Wanem nao lid taem blong ol oda?
Standet fiting: Ol i save salim insait long 1-3 de (long-stokim ol samting).
Ol oda blong kastom: Plante taem 7-45 dei, i dipen long kompleksiti.
